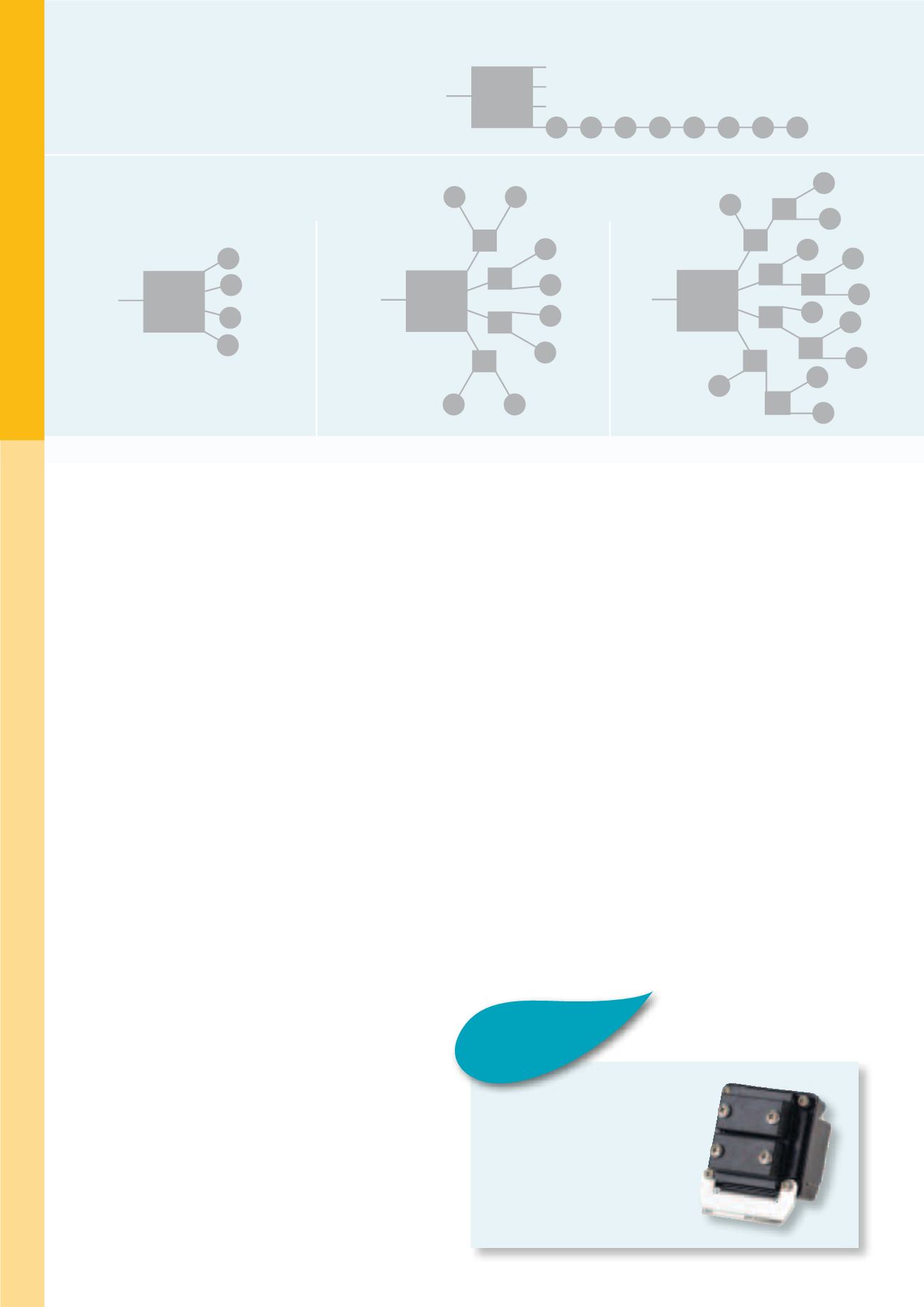

System diagram: Combination possibilities of the LunAqua 10
system
Example 1
Example 2
Example 3
PowerBox 12 V
With the PowerBox up to 12 LunAqua
10 LED spotlights can be connected on
one UST 150 / 01
(up to 8 units in one series).
Dimensions: 75 x 80 x 95
Rated voltage: 12 V
Number of outlets: 2
Item no. 50492
Extras
The world’s first IP 68 underwater
connection technology with 2 year guarantee*
P. 251
LED systems from OASE
At last, no more unsafe wiring and connecting of
light fixtures:
The IP 68 connection technology from
OASE sustainably ensures safety and it is particularly
easy to install.
With the worldwide unique IP 68 connection tech-
nology, connection and operation of light fixtures
underwater is now particularly safe.
All connecting cables, transformers and power units
of this series guarantee all-round water-tightness
to a depth of 4 m! An axial flat seal with integrated
capillary barrier in the plug connectors of the con-
necting cable and the associated boxes (PowerBox
and DMX box) make it possible. OASE even provides
a guarantee*
P.251
of 2 years.
Through this innovative technology the entire system
is perfectly matched and can be put together to suit
individual requirements:
Simply select from among the extensive OASE as-
sortment of pumps, LED illumination, Jumping Jets,
as well as connecting cables and PowerBoxes.
Tips & tricks:
• Our LunAqua 10 LED or ProfiLux LED offer power
savings of up to 80% compared with the halogen
variants.
• If the LED illuminant should actually fail, it can
be easily replaced by plug connection.
• The cable cross section of the connecting cable that
must be used is 2.5 mm² and the maximum cable
length should not exceed 60 m for each line overall.
Star circuit:
• max. 12 x LunAqua 10 LED / ProfiLux LED
Series circuit:
• max. 8 x LunAqua 10 LED / ProfiLux LED in series
• For a series circuit the PowerBox plus cable
is additionally required per spotlight!
