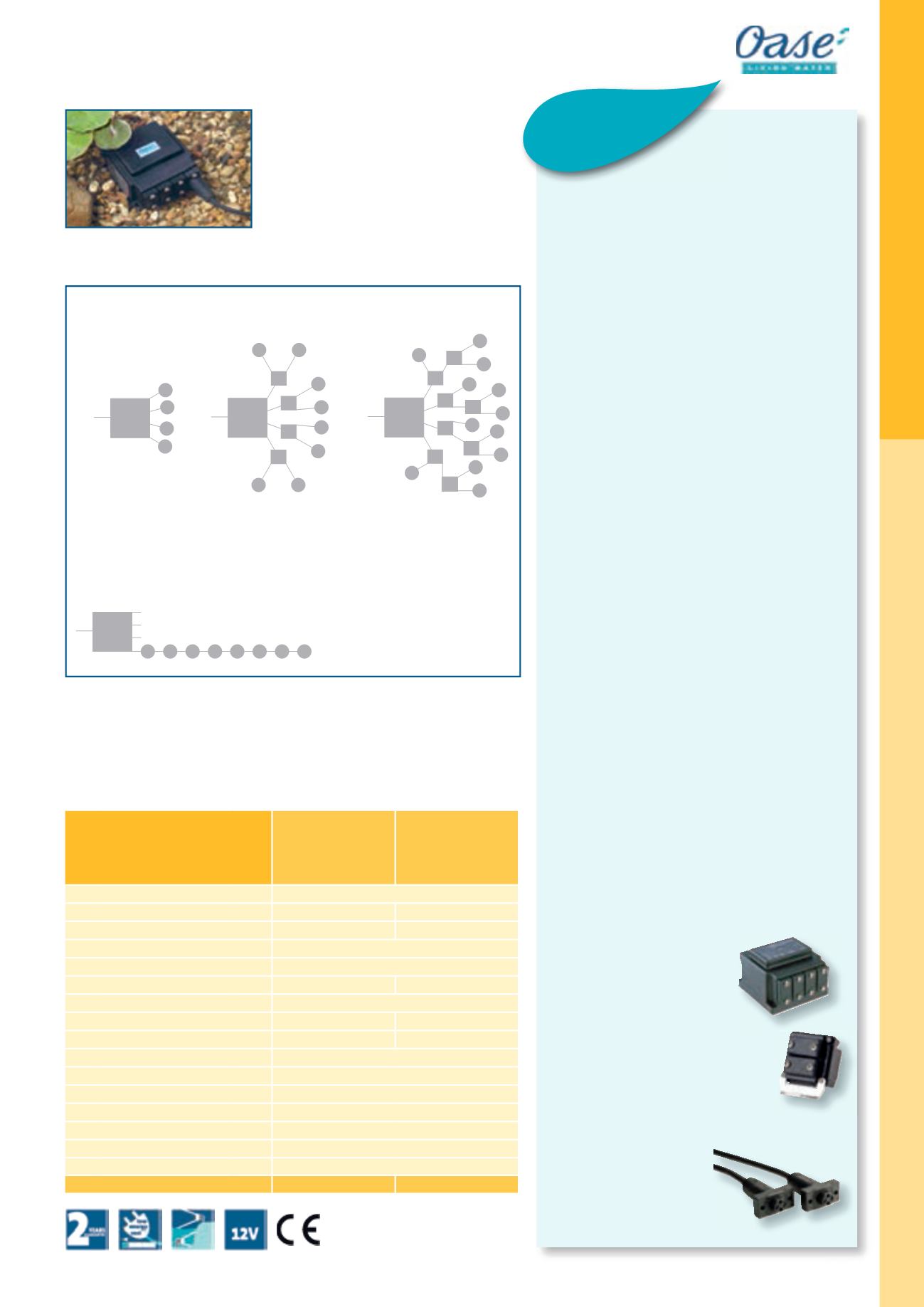

IP68 connection technology
All connection cable, transformers and
power boxes for use under water (to 4 m
water depth).
Recommendation
The cable cross section of the connecting
cable that must be used is 2.5 mm² and
the maximum cable length should not
exceed 60 m per line overall.
Accessories
Underwater transformer UST 150 /01
Easy and safe operation above
water and underwater –
standard regulations do not
allow use in swim ponds
Item no. 50401 (page 249)
PowerBox 12 V AC /01
With the PowerBox, up to 12 LunAqua 10
LED spotlights can be connected on
one UST 150/01 (up to 8 units in series).
Item no. 50492 (page 249)
Connection cable 2.5 m /01
Item no. 50402 (page 249)
Connection cable 5.0 m /01
Item no. 50403 (page 249)
Connection cable 7.5 m /01
Item no. 50404 (page 249)
Top product characteristics
•
Powerful, energy-efficient LED spotlight
for use underwater and above the water
surface (to 4 m water depth)
• Illumination range to 12 m
• Flexible extension and seamlessly compa-
tible with the LunAqua 10 spotlights
P
LED LED LED LED LED LED LED LED
UST
150
UST
150
LED
LED
LED
LED
Example 1
UST
150
Power
Box
Power
Box
Power
Box
Power
Box
LED
LED
LED
LED
LED
LED
LED
LED
Example2
UST
150
Power
Box
Power
Box
LED
Power
Box
LED
LED
Power
Box
Power
Box
LED
LED
LED
Power
Box
Power
Box
LED
LED
LED
Power
Box
LED
LED
LED
Example3
Star circuit:
• Max. 12 x LunAqua 10 LED / ProfiLux LED
Series circuit:
• Max. 8 x LunAqua 10 LED / ProfiLux LED in series
• For a series circuit the PowerBox plus cable is¡additionally
required per spotlight!
Extras
*page310
*1
Additional instructions concerning the energy efficiency classes are provided on 302
T
LunAqua 10 LED /01
Illumination set
MIDI/MAXI/AirFlo
LED/01
Dimensions (L x W x H)
mm
145 x 160 x 182
Rated voltage
12 V AC / 24 V DC
-
Rated voltage (primary, secondary)
- 230 V / 50 Hz, 12 V / AC
Power consumption light fixture
10 W
Energy efficiency class - light fixture
*1
A
Power consumption set
W
-
40
Protection class
IP 68
Cable length 12 V device
m
- 50.00 (Power unit) + 1.00
Net weight
kg
1.20
14.20
Guarantee
*P.310
Years
2
Illuminant type
LED
Light flux
lm
365
Light colour
neutral white
Colour temperature
K
4100
Half peak angle
18 Degrees
Item no. (GB-Version)
−
Item no.
50366
50479
LED
I & P
